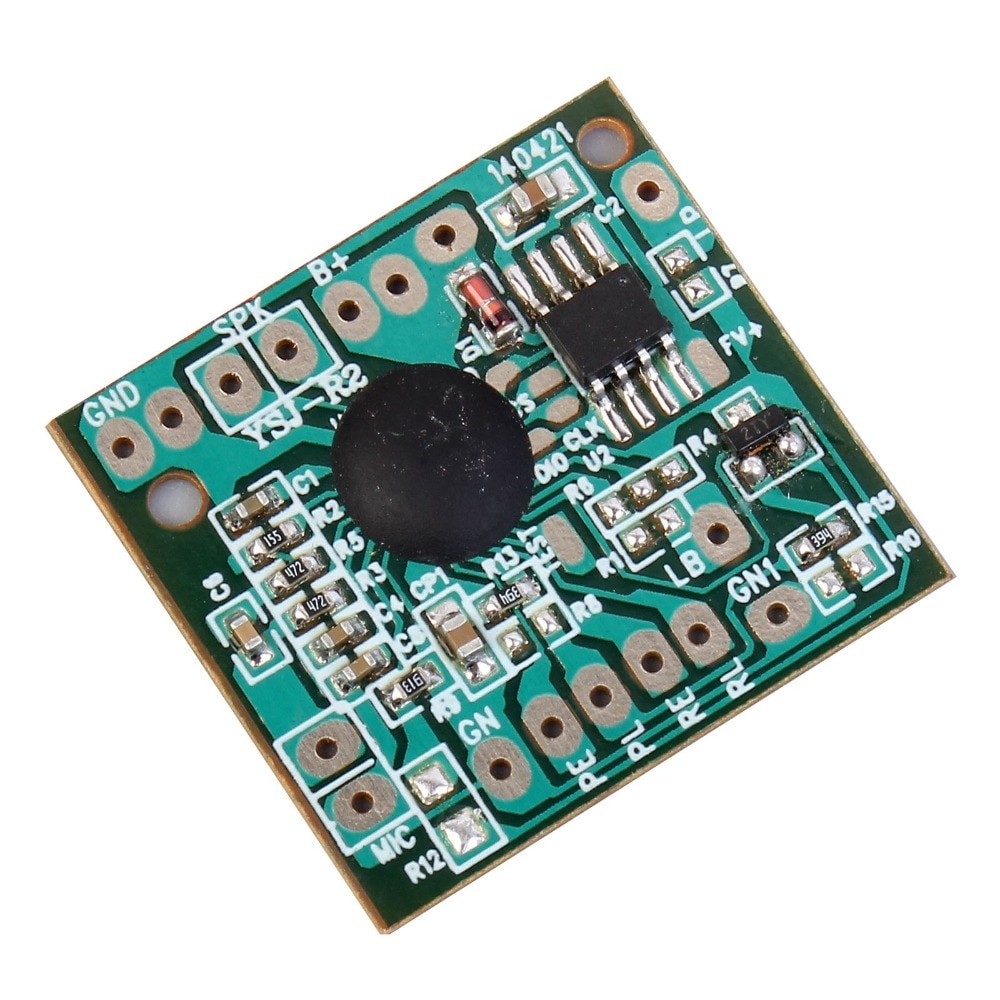

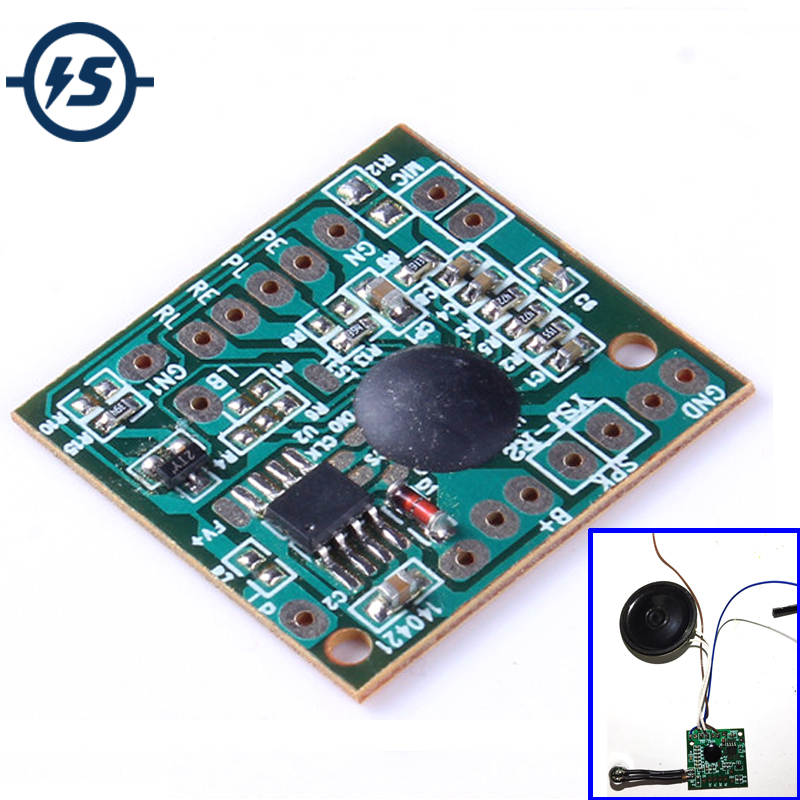

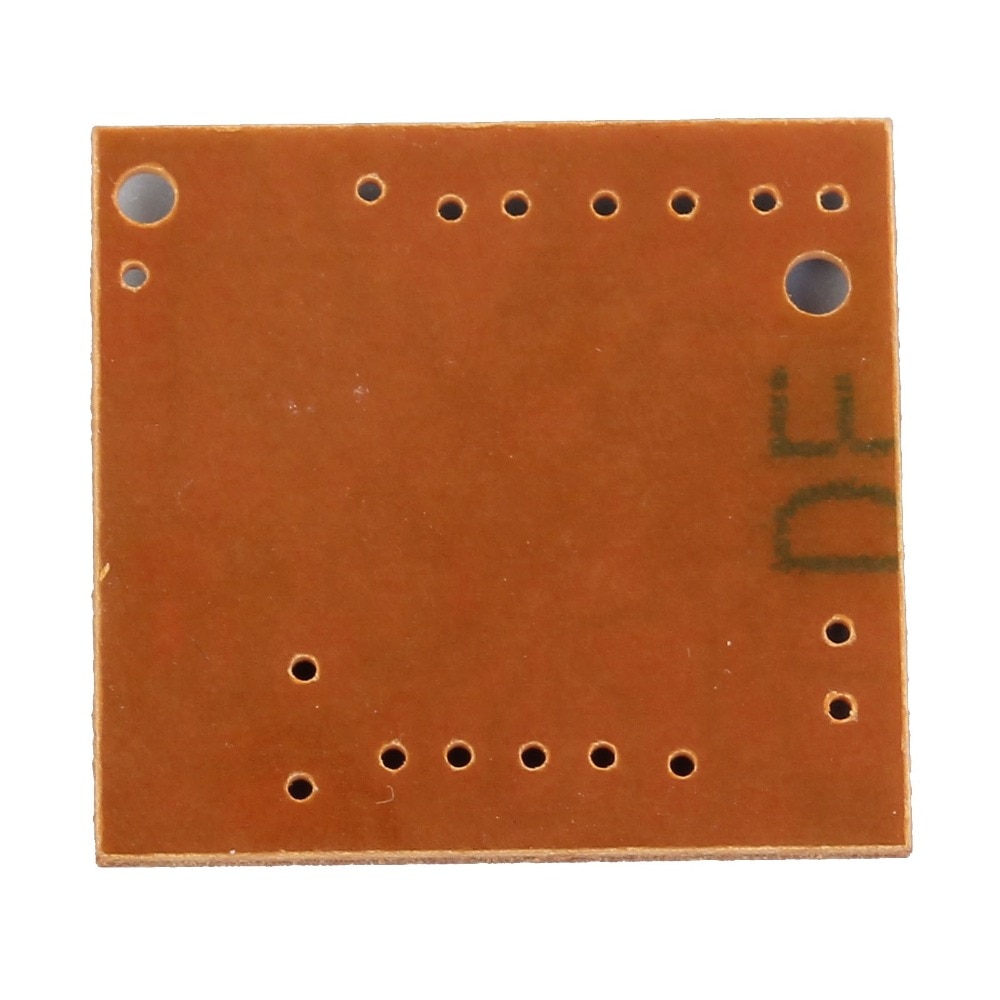

Sound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board Gift

Availability:

460 in stock

1 Sales

$4.20 $5.76

460 in stock

NOTE : we have documents of most of products in our store

If you need it , contact us 🙂

Sound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board Gift

Product Introduction:

1.Operating Voltage:3-5V
2.Standby Current:<5uA (3.6V)
3.Recording Time:120s
4.Recording Input:adopt ADC 14 Bit,Audio Out DAC 14 Bit
5.Recording Voice Format:ADPCM
6.Recording Distance:3-5m
7.Recording/Voice Play Mode:independently play a piece of sound recording or play a piece of prerecordig voice
8.Cycle Mode Play:can set cycle play times or constant cycle play
9.Prerecording voice is burnt from external to SPI Flash,can prerecord chord music or voice
10.Adaptive Loudspeaker:8-32 ohm output power 4.5V 0.6W 8 ohm
11.Recording Prompt:before recording one “BEEP”,after finished,two “BEEP”
12.Mute Mode:no “BEEP”
13.Sampling Frequency:16KHz

Key Recording Mode:

Everytime repeatedly record,it will clear previous voice data

1.RECL:level remains mode recording

2.RECE:single trigger mode recording

Key Play Mode:
1.PLAYL:level remains mode play,can connect with photoresistor,can play by light source control
2.PLAYE:single trigger mode play

Sound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board Gift

Sound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board Gift

Sound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board Gift

Sound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board GiftSound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board GiftSound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board GiftSound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board GiftSound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board GiftSound Module For Electronic Toy IC Chip Voice Recorder 120s 120secs Recording Playback Talking Music Audio Recordable Board Gift



SKU: 32735364629 Category:
Brand Name

IS

Condition

New

Type

Logic ICs

Package

SOP

Dissipation Power

None

Model Number

Voice Module

Application

MP3/MP4 Player

Operating Temperature

-30-85 Celsuis

Supply Voltage

3-5V

is_customized

Yes

Recording Time

120s

Recording Voice Format

ADPCM

Recording Distance

3-5m

Standby Current

<5uA (3.6V)

Recording Input

Adopt ADC 14 Bit,Audio Out DAC 14 Bit
