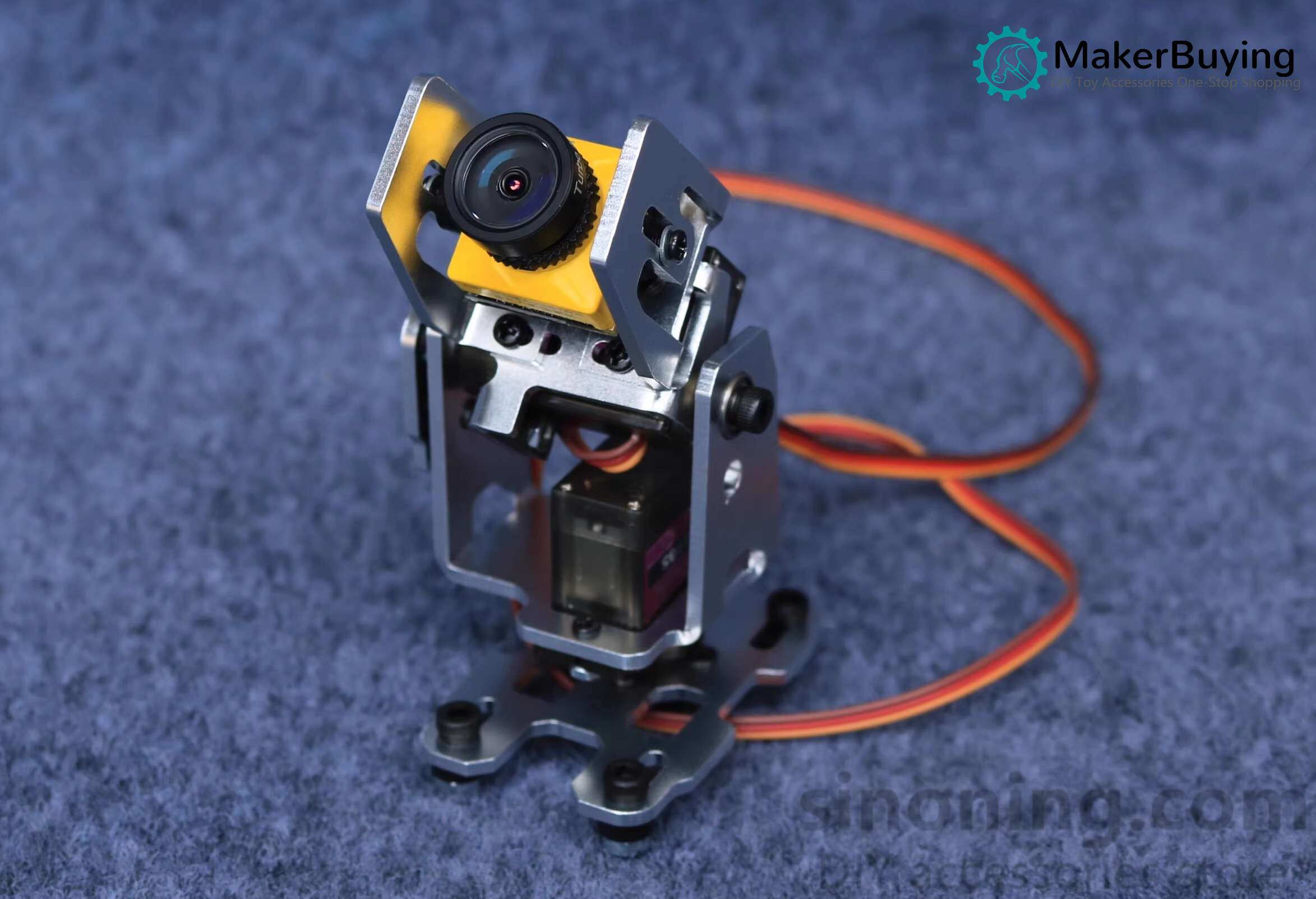

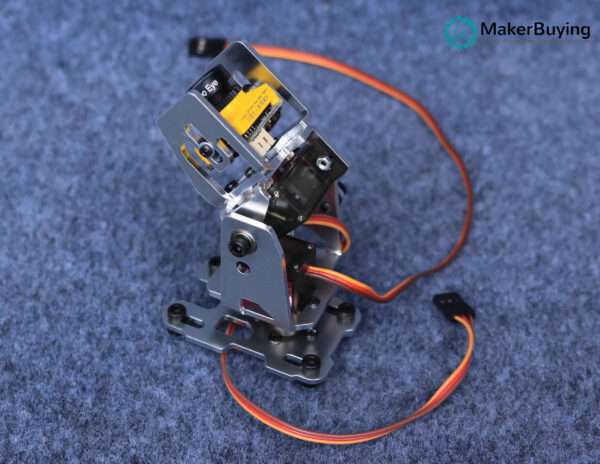

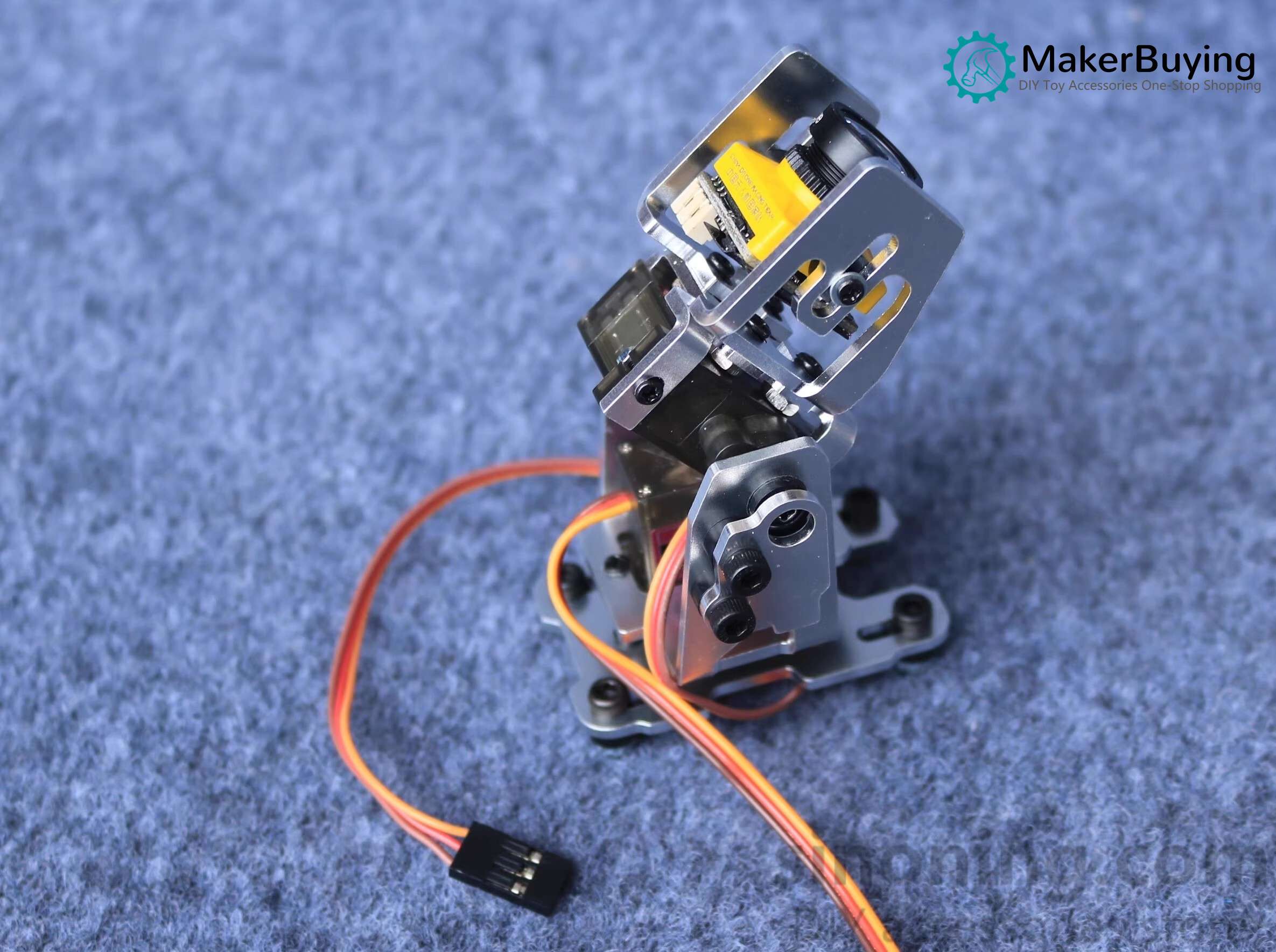

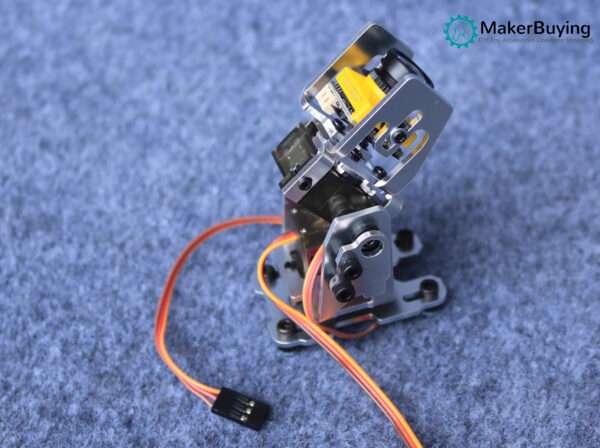

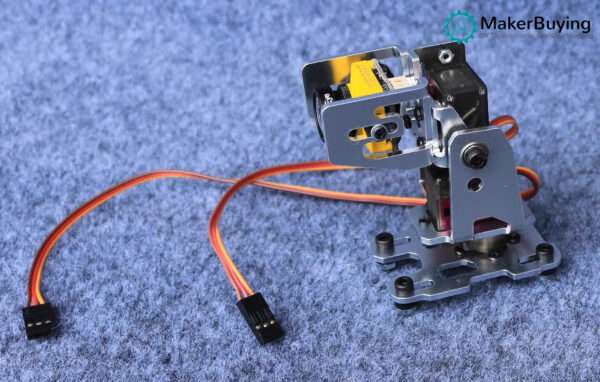

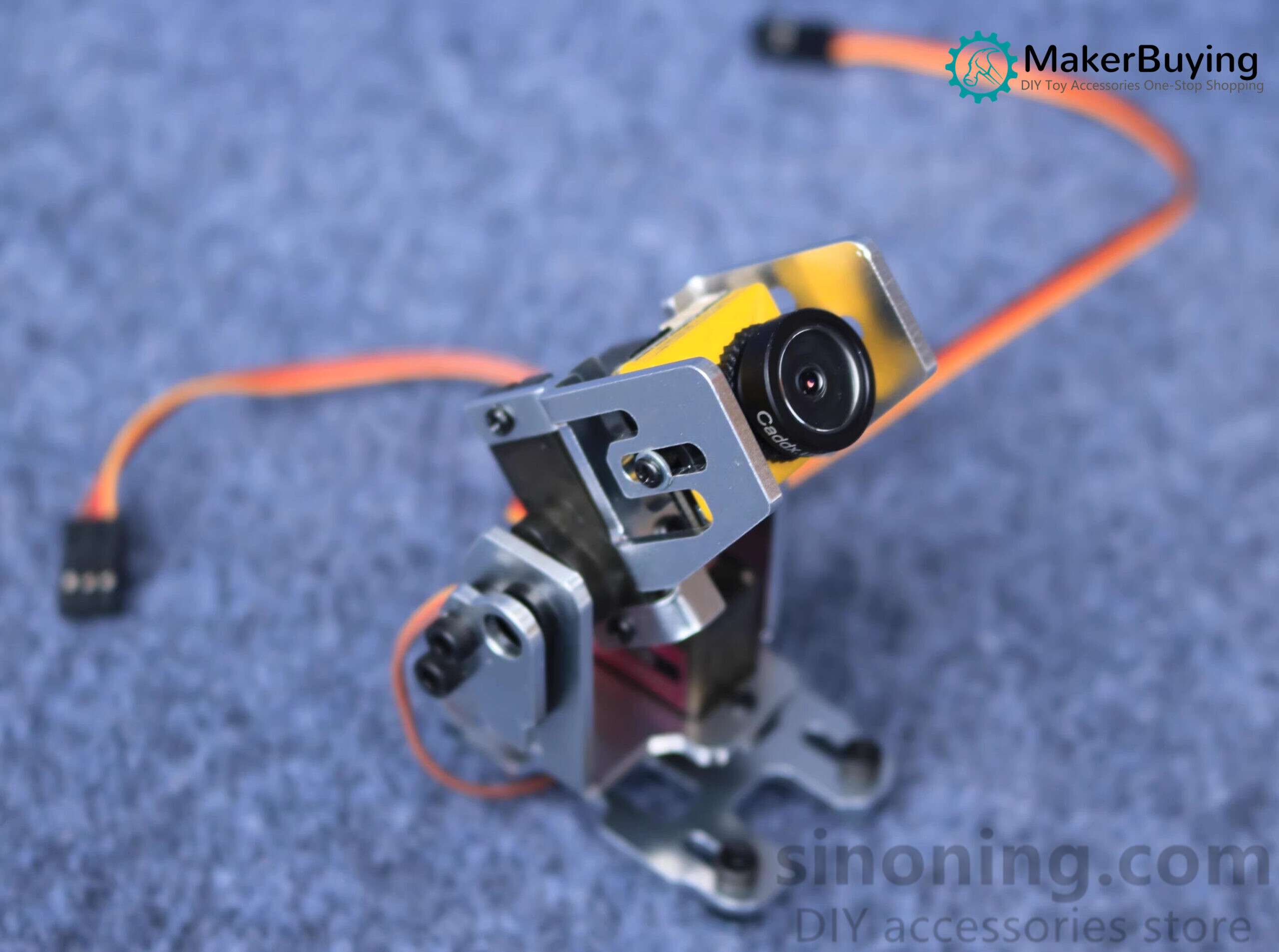

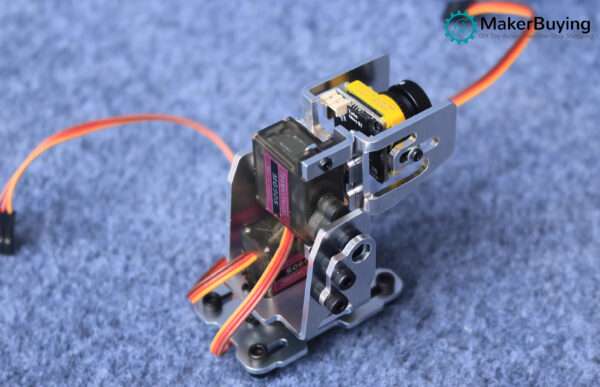

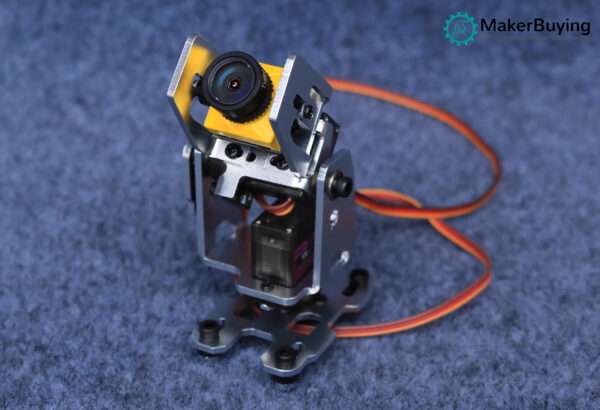

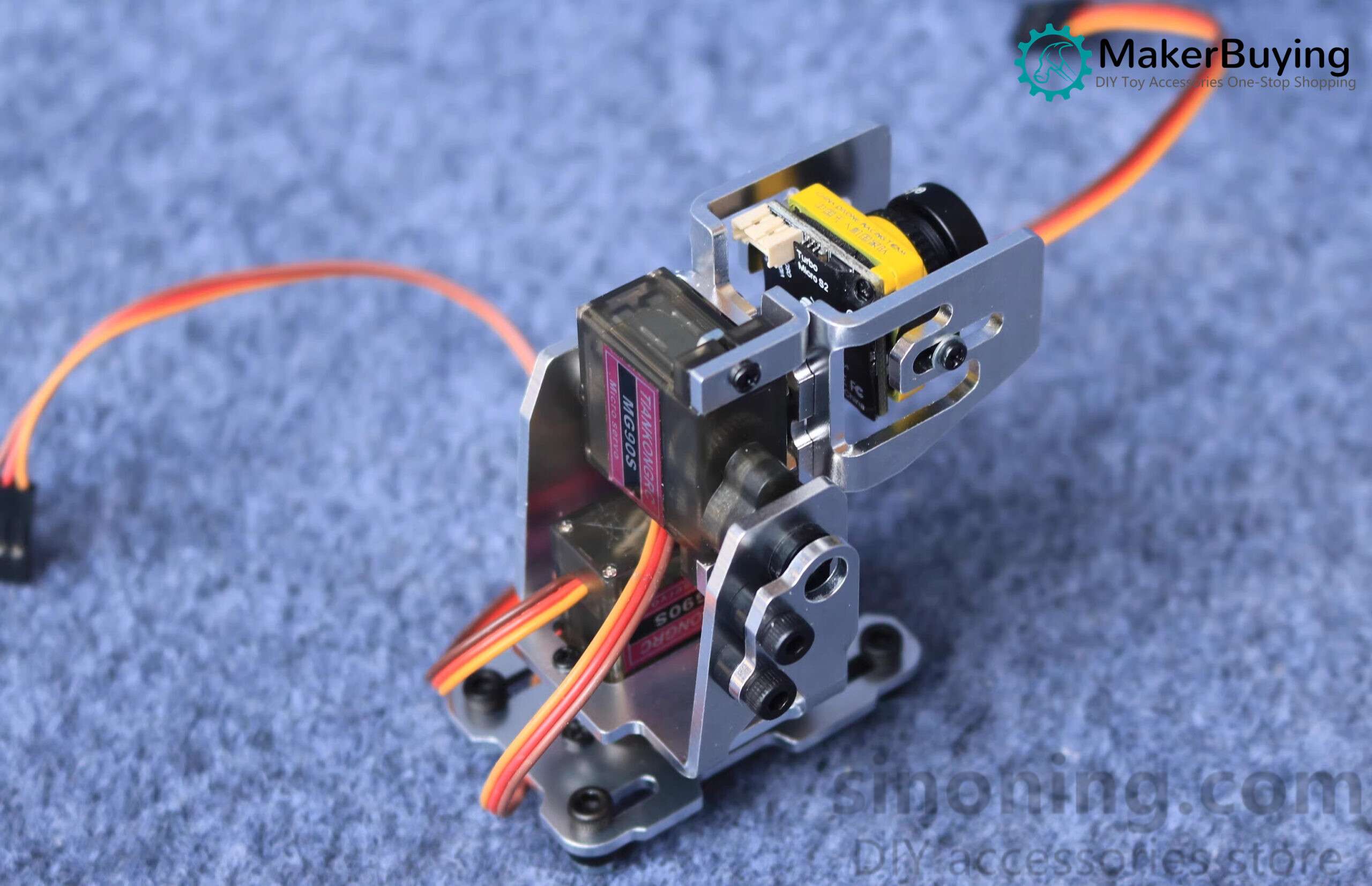

Steering gear pan tilt bracket, sky end FPV head tracking, dual axis pan tilt FPV pan tilt aircraft model camera pan tilt

Parameters and Description:

Base installation size: adjustable (29-43) X23mm

Material: Aluminum alloy

Height approximately 63mm

Weight (excluding steering gear): approximately 33 grams

Weight (including all metal gear steering gear): approximately 62 grams

Plug type: Standard 2.54MM 3P servo plug

Pin definition: Brown 5V – Red 5V+Yellow PWM IN (typical value 50hz1000-2000us)

Steering gear model: MG90S (all metal teeth)

Working voltage: DC4.8~5V

Can install cameras within the size of 29x29mm (mainstream FPV cameras can be perfectly installed), connecting to the aircraft model remote control receiver requires 2 channels

Reminder:

Don’t use your hands to forcefully break the angles of the two steering gears!

Excessive force and poor control can easily cause the steering gear to sweep teeth!
