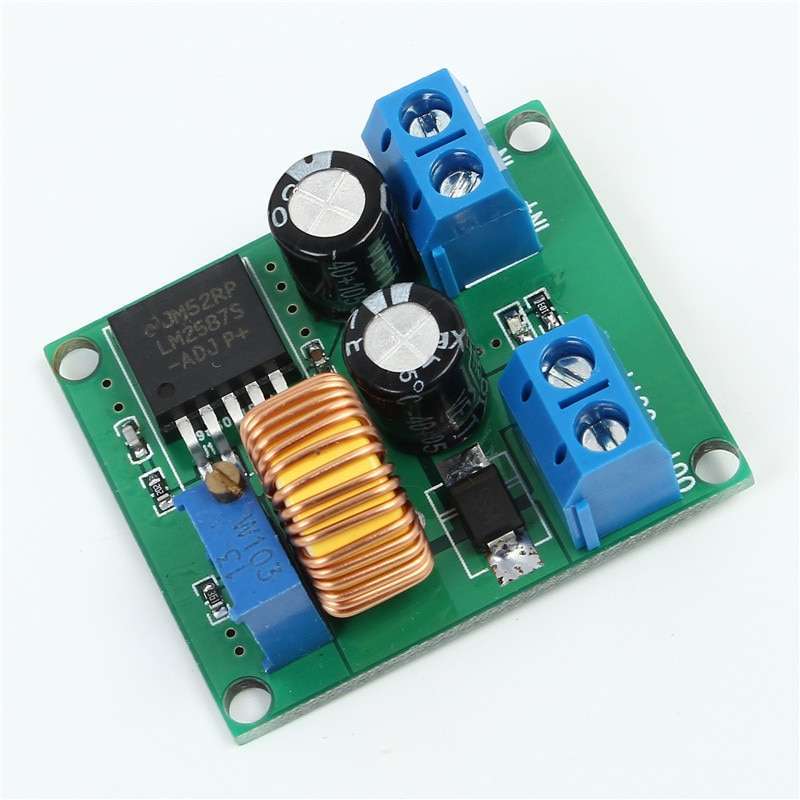

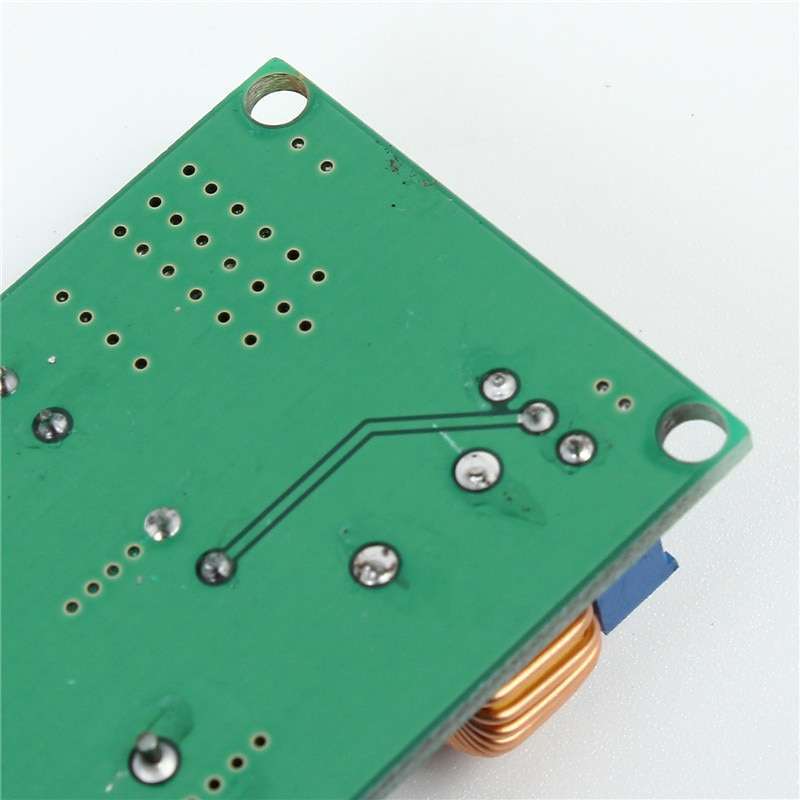

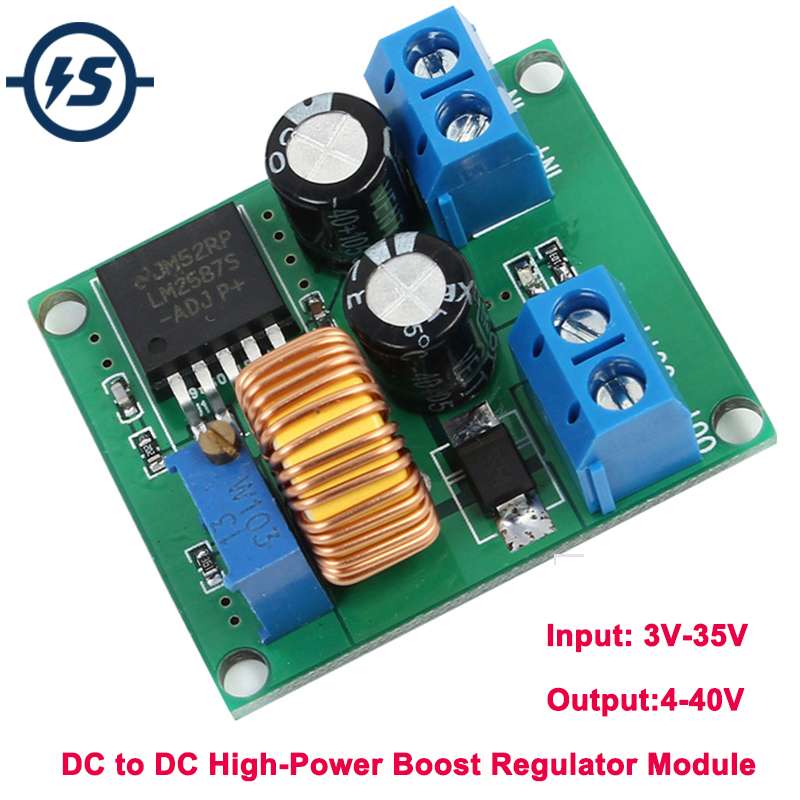

Step Up Boost High Power Regulated Power Converter Module DC-DC 3V 5V 12V to 19V 24V 30V 36V Adjustable

Description:

·Input Voltage: DC 3V-35V
·Output Voltage: DC 4V-40V (continuously adjustable)
·Efficiency: 94%(MAX)
·Size: L37mm*W32mm*H15mm
·Working Temperature: -40-+85 degrees
·Load capacity: Max 80W
·The way of Connection: the connection terminal is does not need to be welded, the “IN” is the input, and the “OUT” is the output.

Note:
When the output voltage is closer to the output voltage,the carrying capacity is higher,and the efficiency is also higher.
