Electronic Module

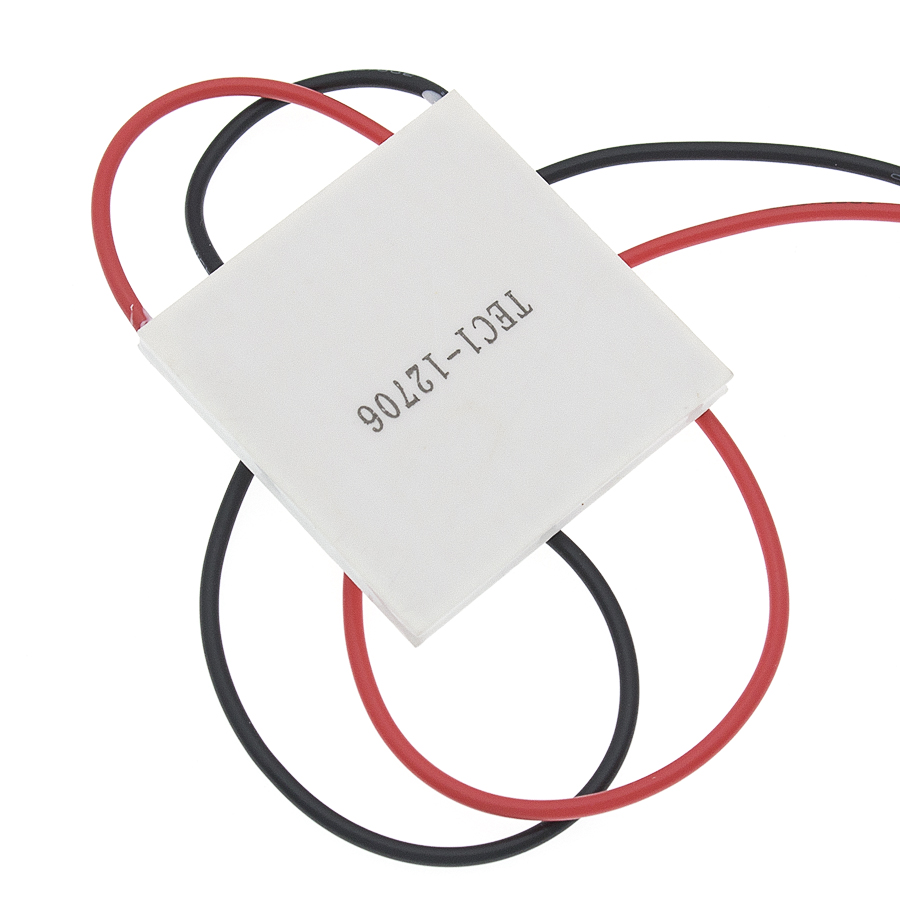

TEC1-12706 12V 6A TEC Thermoelectric Cooler Peltier
Availability:
99495 in stock
Sales 1
$3.50
External dimensions: 40 * 40 * 3.75mm
Internal resistance: 2.1 ~ 2.4Ω (ambient temperature of 23 ± 1 ‘C, 1kHZ Ac test)
The maximum temperature difference: Tmax (Qc = 0) above 59 ‘C.
Working current: Imax = 4.3-4.6A (rated at 12V)
Rated voltage: 12V (Vmax: 15V starting current 5.8A)
Cooling power: Qcmax 55W
Working environment: temperature range -55 ‘C ~ 83’C (high ambient temperature drop directly affect the cooling efficiency)
Description :
Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own
custom car drink warmer/cooler.
Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts
These devices must be used in conjunction with a heat sink to avoid burned
Each device is full inspected and tested
| Brand Name | TENSTAR ROBOT |
|---|---|
| Condition | New |
| Type | Voltage Regulator |
| Supply Voltage | 1 |
| Package | SMD |
| is_customized | Yes |
| Dissipation Power | 1 |
| Model Number | 12706 |
| Application | Computer |
| Operating Temperature | 1 |
