1. Introduction

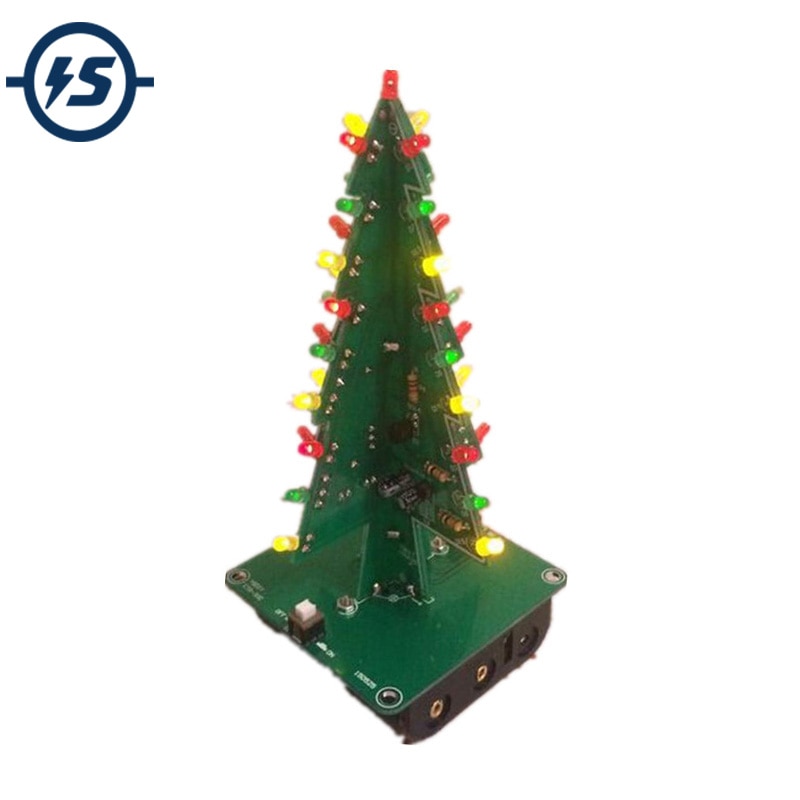

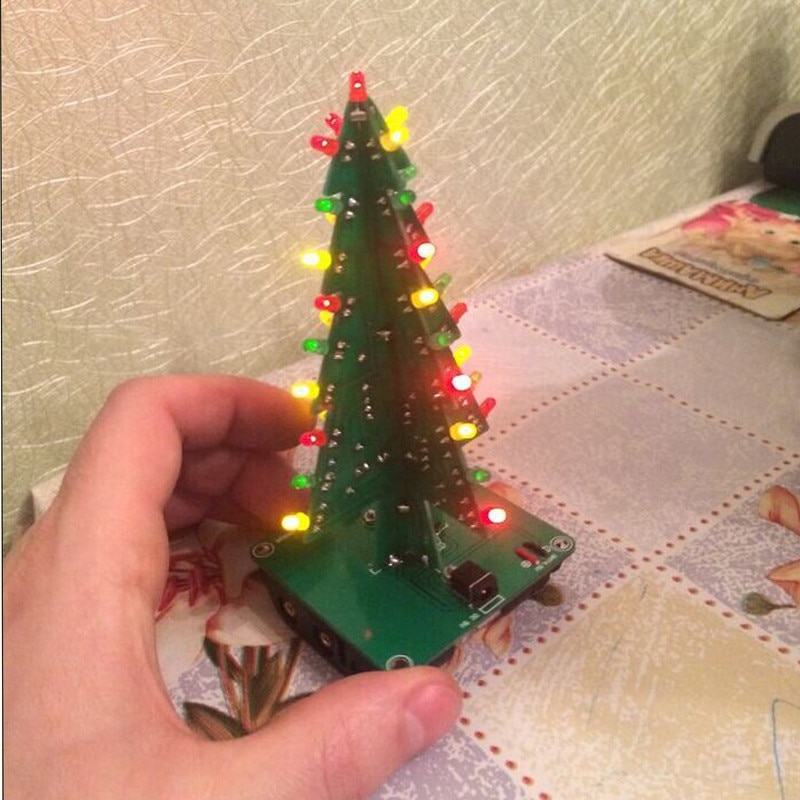

CTR-30 flash Christmas tree kit consists of three circuit board, allows 36 LED flash alternately,showing a Christmas tree in the space of three-dimensional profile (the night environment has better viewing).

2.Parameter

NO.ParameterValue
1ModelCTR-30C
2Work VoltageDC4.5-5V
3Power TypeAA*3 battery or USB Cable
4Installation Size60mm*136mm*60mm

3. Component listing

NO.Component NamePCB MarkerParameterQTY

CTR-30A

1Metal Film ResistorR6330ohm1
2Metal Film ResistorR41K1
3Metal Film ResistorR22K1
4Metal Film ResistorR1,R3,R5,R710K4
5Electrolytic CapacitorC1-C347uF 16V3
6Red LEDD1-D6,D193mm7
7Yellow LEDD7-D123mm6
8Green LEDD13-D183mm6
9S9014 TransistorQ1-Q3TO-923
10PCBCTR-30A1

CTR-30B

11Metal Film ResistorR6330ohm1
12Metal Film ResistorR41K1
13Metal Film ResistorR22K1
14Metal Film ResistorR1,R3,R510K3
15Electrolytic CapacitorC1-C347uF 16V3
16GreenD1-D63mm6
17Yellow LEDD7-D123mm6
18Red LEDD13-D183mm6
19S9014 TransistorQ1-Q3TO-923
20PCBCTR-30B1

CTR-30C

21Self-Locking SwitchS15.8mm1
22DC Power SocketJ13.5mm1
23Battery BoxAA*31
24USB to DC 3.5mm Cable80cm1
25ScrewM2*8mm2
26NutM22
27PCBCTR-30C1

Please NOTE:Users can complete the installation by PCB silk screen and component listing.

4. Component Description

Three-Dimensional 3D Tree LED DIY Kit Red/Green/Yellow LED Flash Circuit Parts Electronic Fun Suite Gift

1>. 1pc 330ohm Metal Film Resistor

2>. 1pc 1K Metal Film Resistor

3>. 1pc 2K Metal Film Resistor

4>. 4pcs 10K Metal Film Resistor

5>. 3pcs 47uF 16V Electrolytic Capacitor

6>. 7pcs 3mm Red LED

7>. 6pcs 3mm Yellow LED

8>. 6pcs 3mm Green LED

9>. 3pcs S9014 Transistor

10>. 1pc PCB CTR-30A

11>. 1pc 330ohm Metal Film Resistor

12>. 1pc 1K Metal Film Resistor

13>. 1pc 2K Metal Film Resistor

14>. 3pcs 10K Metal Film Resistor

15>. 3pcs 47uF 16V Electrolytic Capacitor

16>. 6pcs 3mm Green LED

17>. 6pcs 3mm Yellow LED

18>. 6pcs 3mm Red LED

19>. 3pcs S9014 Transistor

20>. 1pc PCB CTR-30B

21>. 1pc Self-Locking Switch

22>. 1pc 3.5mm DC Power Socket

23>. 1pc AA*3 Battery Box

24>. 1pc USB to DC 3.5mm Cable

25>. 2pcs Screw M2*8mm

26>. 2pcs Nut M2

27>. 1pc PCB CTR-30C
