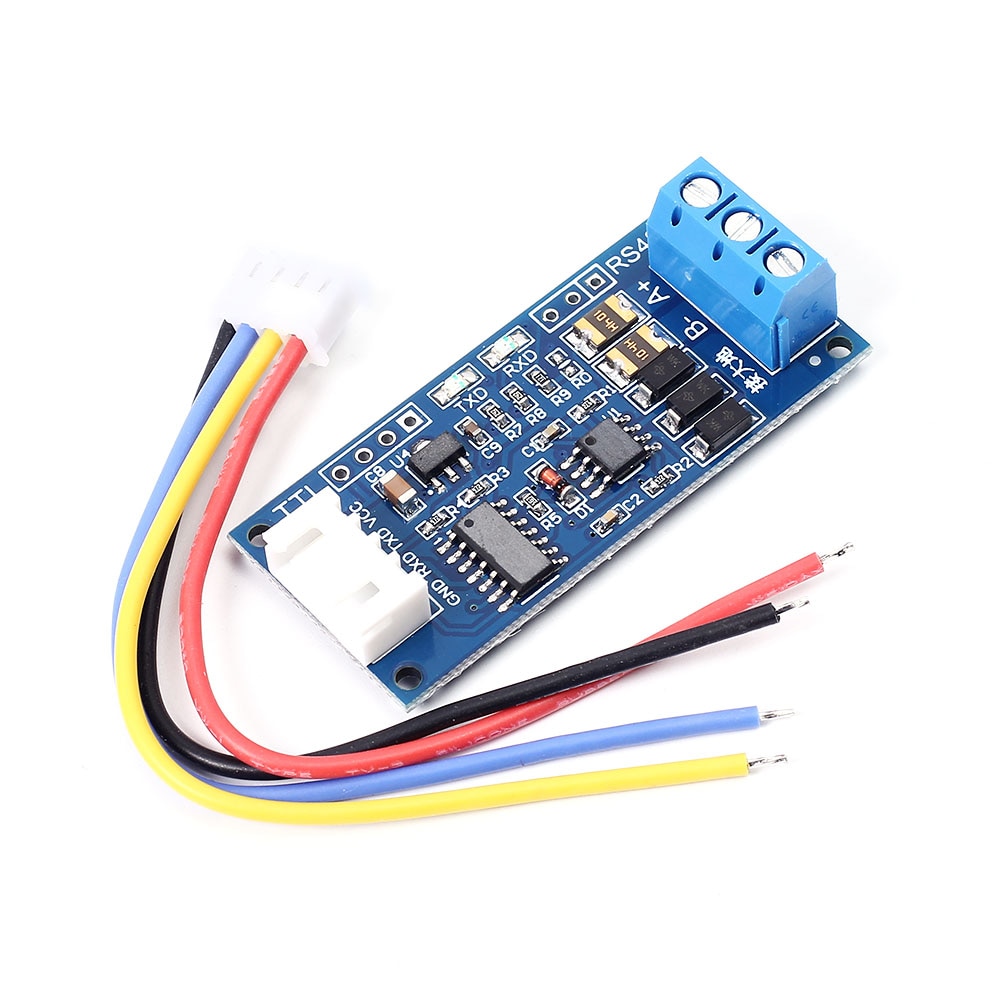

TTL to RS485 For Arduino USB Module Converter AVR 3.0V ~ 30V Converter High EMC EMI 3.3V/5.0V Signals Hardware Automatic Control

1.Description:

The power supply of this product is wide voltage (3.0V ~ 30V), 3.3V system and 5.0V system compatible, 3.3V and 5.0V signals can match. This product with a terminal block and silicone wire, direct wiring use, all imported original chip, powerful, lightning protection design, anti-interference ability, industrial.

This transmission module to achieve the TTL signal and RS485 signal interchange, but we must know, 485 is half duplex communication, this communication can achieve two-way communication, but not in both directions at the same time, must Alternately; that is, each section of the communication channel can be either a transmitting end or a receiving end, but at the same time, the information can have only one transmission direction.

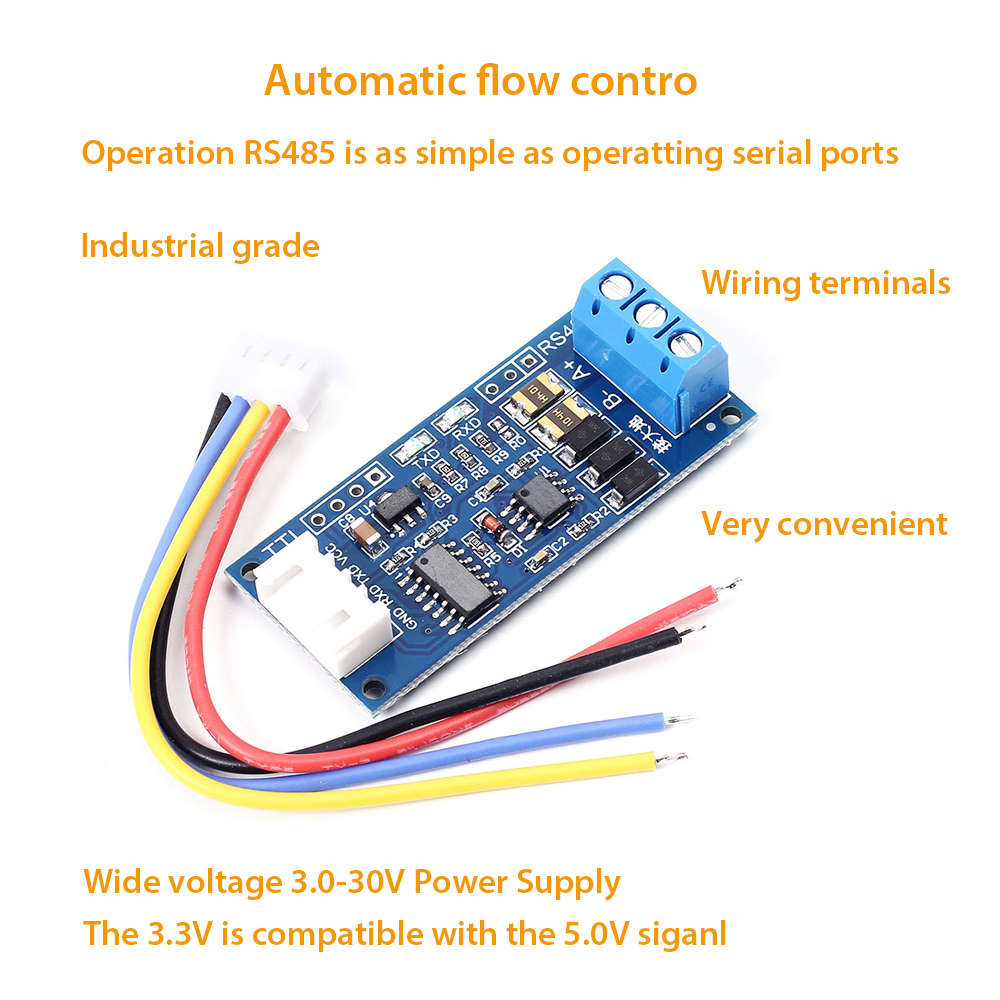

To achieve the RS485 signal automatic flow control, send and receive direction automatically switch, use this module with your operation as simple as the serial port

Baud rate: 110 ~ 256000bps

2. Feature:

1>. wide voltage power supply (3.0V ~ 30V), the limit voltage of 33V, it is recommended to use within 30V, the minimum voltage is higher than 2.8V.

2>. compatible with 3.3V and 5.0V signals, can match the module

3>. has a very high EMC and EMI performance.

4>.the use of imported chips, industrial design, anti-interference ability, while the use of powerful 485 lightning design, industrial and field can be used in harsh environments, the working temperature of -40 ℃ to +85 ℃, transmission Distance up to kilometers (with 850 meters of 2*1.5 cable to do the test, it is recommended to use within 800 meters, more than 800 meters plus repeaters)

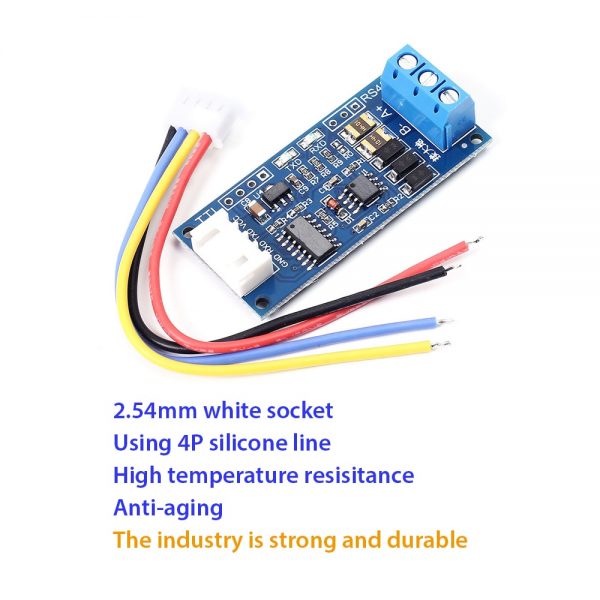

5>. with a terminal block and silicone wire, the use of very convenient.

6>. with RXD, TXD signal indicator, send and receive situation panoramic view.

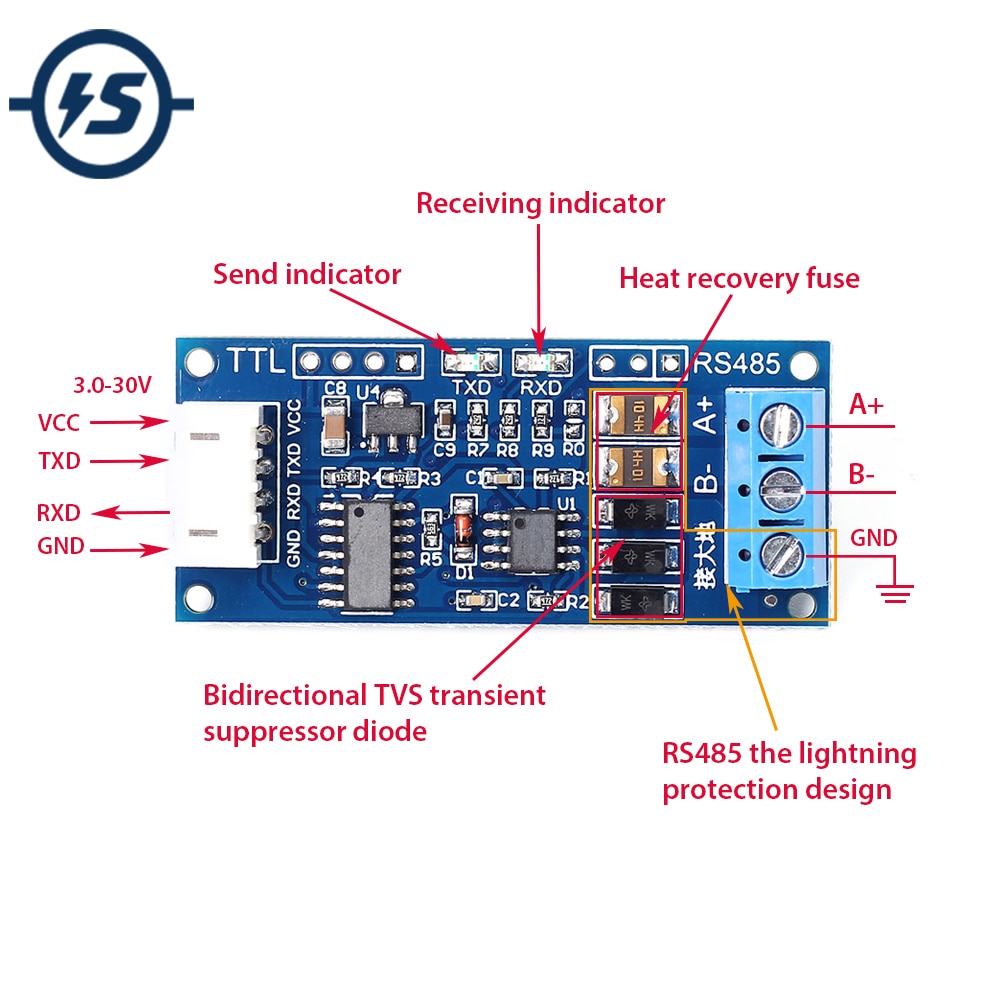

7>. This module fully considered the 485 bus lightning protection design and anti-jamming design, high EMC, EMI performance, long-distance transmission in the field, the module “access to the earth” side access to the earth, can play well The anti-interference and lightning protection of the role of the 485 bus more secure; indoor short-distance transmission can not access the earth.

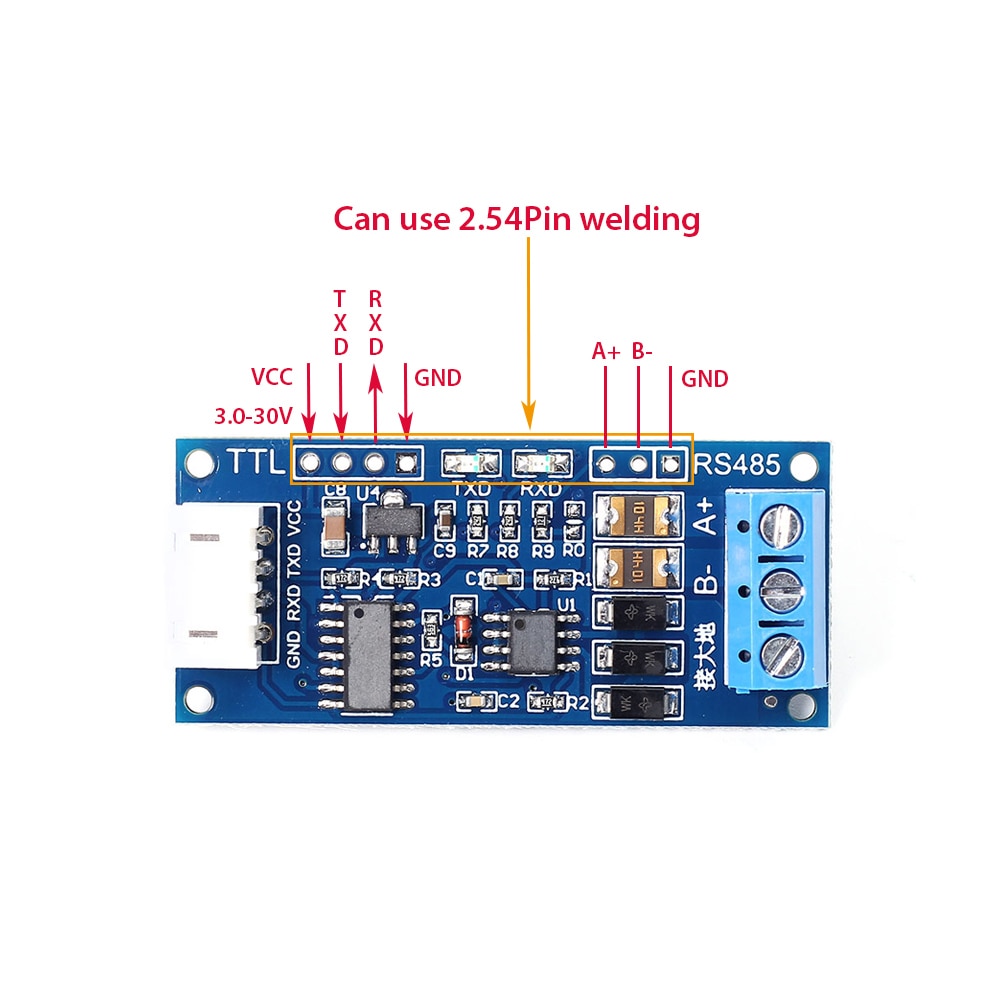

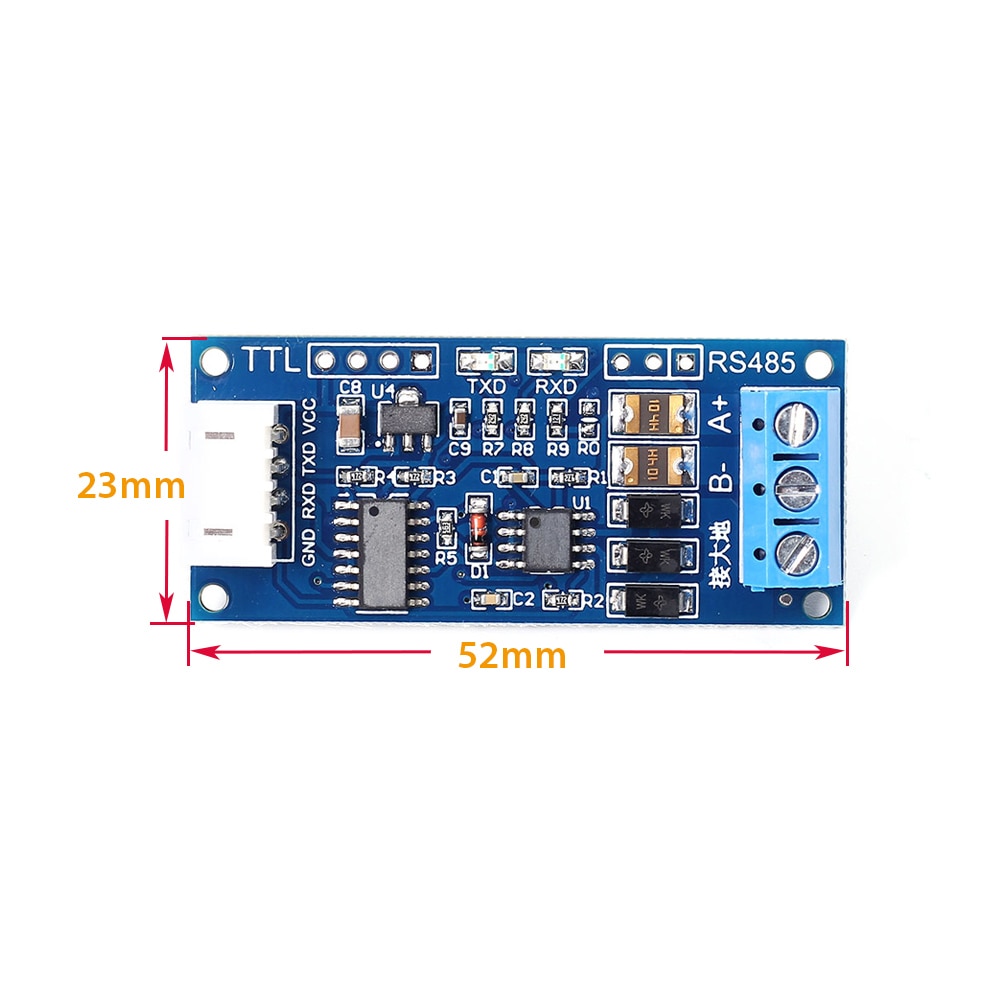

8>. with a standard 2.54 pitch pin, to facilitate your secondary development

9>. with 120 ohm matching resistance, shorted R0 can be enabled to match the resistance, long-distance transmission recommended shorted.

10>. support multi-machine communication, the same network can connect at least 40 nodes.

11>. can be hot-swappable, there will be no signal to death phenomenon.

12>. anti-jamming alignment and copper way to prevent interference with the signal.
