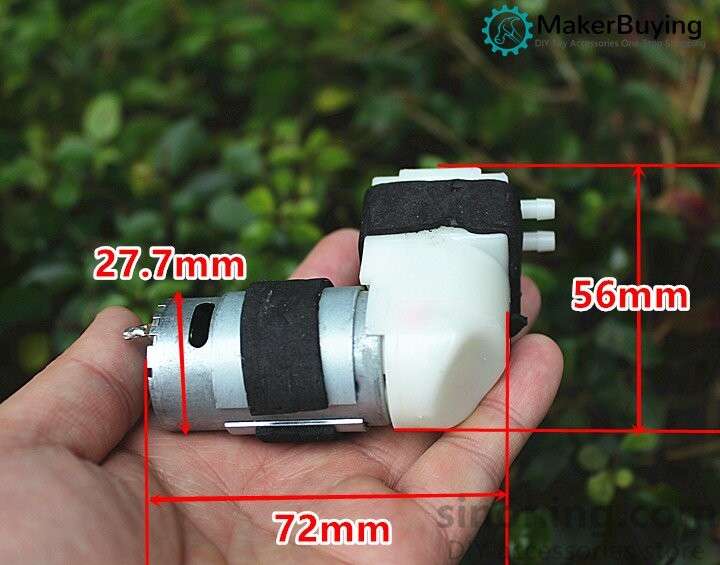

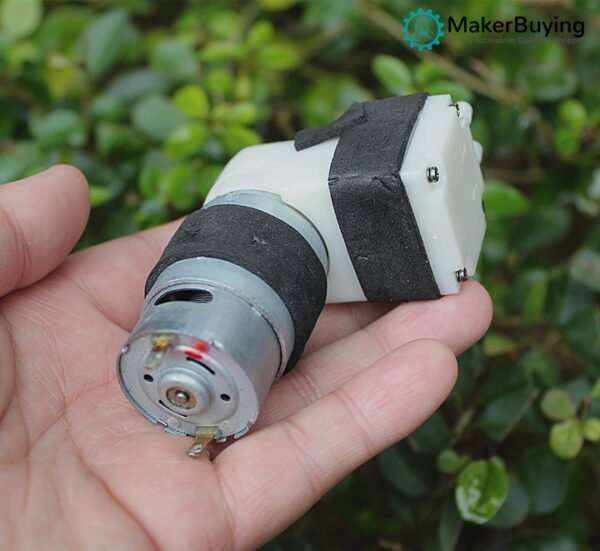

Unused disassembly micro DC vacuum pump air pump DC12V motor negative pressure pump

Micro vacuum pump air pump removed from new machine, unused from carbon brushes and commutator.

The rated voltage is 10V, and the output air pressure is about 70kpa. If the air pressure exceeds this, the motor will be blocked. When the voltage is increased to 12V, the output air pressure can reach 120kpa. If the air pressure output is increased, the motor will still be blocked. The motor will not be blocked until the motor voltage is increased to 16V. Locked rotor, the output air pressure can reach 250kpa at this time, but the motor cannot work for a long time under this voltage.

【Rated voltage】DC 10V

【Rated power】20W

【No-load current】1.3A

【Flow】10L/min

【Pressure】70kpa

【Vacuum degree】-60kpa

[Applicable voltage] DC6-12V

【Weight】140g
