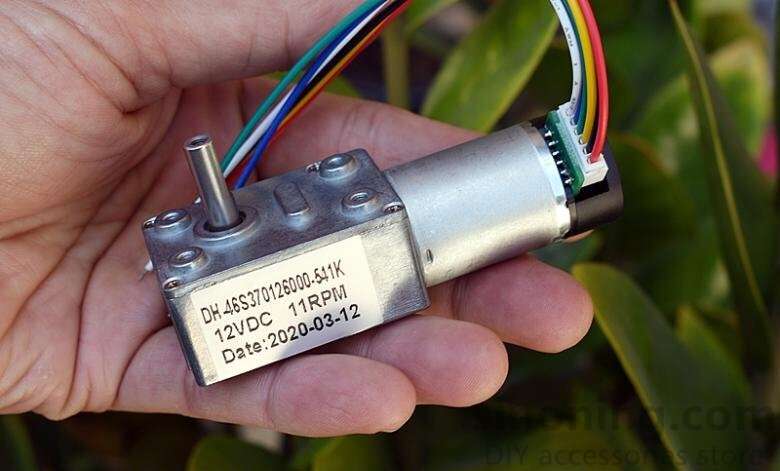

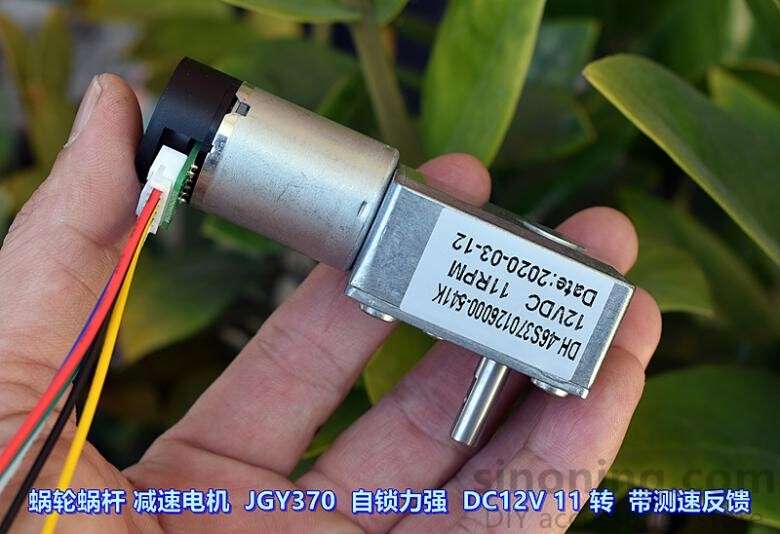

Worm gear motor JGY370 strong self-locking force DC12V 11 rpm with speed feedback

The brand new miniature worm gear motor, 370 motor is 6000 rpm at DC12V, the reduction ratio is about 1:541, the output shaft speed is about 11 rpm, the operation is silent, the torque is large, the motor has speed feedback, the workmanship is exquisite, it is relatively high-end The JGY370 geared motor.

The motor comes without wiring. We found the current wiring to match the motor, so the color of the wire does not represent the meaning. The definition of the terminals on the feedback board at the back is as follows:

White wire: motor positive

Blue wire: VCC

Green line : Signal A

Yellow line : Signal B

Black wire: GND

Red wire: negative pole of motor

We don’t know how to use the feedback of the motor. We just sell it as an ordinary geared motor. Buyers must know how to use it before they can take pictures. We cannot provide technical support.

Motor weight: 156 grams

Reduction ratio 1:541

Voltage: DC12V

No-load current: 45 MA

No-load speed: 11 RPM

Power-on test machine, the motor runs silently, with strong torque, and the worm gear motor itself has a self-locking function, and the workmanship of the gear motor is very beautiful.
